| Place of Origin: | Shaanxi, China (Mainland) |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO9001 |
| Model Number: | Quenched Tempered Chrome Plated Rod |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Wooden Box (fumigation) |
| Delivery Time: | base on order |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders. |
| Supply Ability: | 6000 Ton/Tons per Year |
| Name: | Quenched Tempered Chrome Plated Rod | Surface Treatment: | Hard Chrome Plated/induction Hardened/Quenched |
|---|---|---|---|
| Material: | CK45 (SAE1045, S45C), 42CrMo (SAE4140), 20MnV6,St52, Stainless Steel | Heat Treated: | Not Hardened / Induction Hardened |
| Hardness: | HRC:58-62 | Tolerance: | ISO F7 Tolerance |
| High Light: | Tempered Chrome Plated Rod,ISO F7 Chrome Plated Rod,ISO F7 chrome plated steel bar |
||

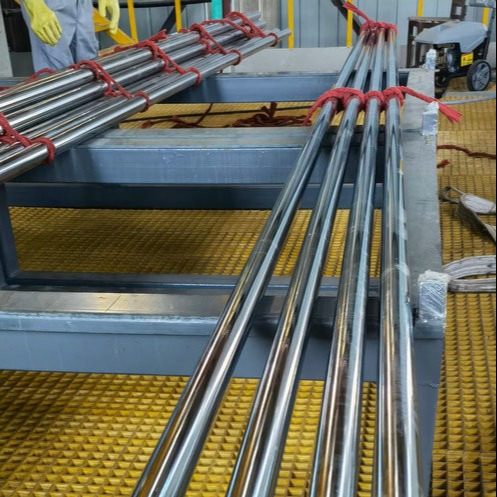

Quenched Tempered Chrome Plated Rod With ISO F7 Tolerance
Introduction
Smooth surface, uniform color and texture, no cracks and bubbles.
After special grinding and polishing, it is resistant to friction and corrosion.High density, high stability, guaranteed quality.
Usage:
Products are widely used in rubber and plastic machinery such as oil cylinders, cylinders, injection molding machines, blow molding machines, die-casting machines, air hydraulic machinery, engineering machinery, packaging and printing machinery, food machinery, medical machinery, light source machinery, textile machinery and other automation equipment.
Parameters
|
Model
|
Hydraulic Cylinder CK45 42CrMo4 Hard Chrome Plated Piston Shaft Rod
|
||
|
Diameter
|
Metric Diameter:3mm,4mm,5mm,6mm,8mm,10mm,12mm,16mm,20mm,25mm.....300mm
Inch Diameter:6.35mm.9.525mm.12.7mm,15.875mm,19.05mm,25.4mm,31.75mm,38.1mm
|
||
|
Length
|
Full Length 6000mm, it can be cut off according to customer requirement.
|
||
|
Quality
|
ISO9001:2008 standard
|
||
|
Material
|
CK45 (SAE1045, S45C), 42CrMo (SAE4140), 20MnV6,St52, Stainless Steel
|
||
|
Surface finish
|
Hard Chrome / None Chrome
|
||
|
Plating Thickness
|
10um ~ 20um in radius.
|
||
|
Heat treated
|
Not Hardened / Induction Hardened
|
||
|
Hardness
|
HRC:58-62
|
||
|
Hardness Depth
|
0.8-3.0mm
|
||
|
Precision
|
g6, h6, h7 or according to your requirement.
|
||
|
Roughness
|
Less than 1.5μm
|
||
|
Straightness
|
Less than 1.5μm of 100mm (Rmax)
|
||
|
Roundness
|
Less than 3.0μm (Rmax)
|
||
|
Performance
|
Long life and low noise
|
||
|
Custom-made
|
End Stepped, End Tapped, End Tread, Wrench Flats, Cross Drilled Holes, Key Groove, Set Screw Grooved, and so on.
|
||
technical standard:
Outer diameter accuracy: f7, f8, h7
Surface finish: ≦Ra0.4S
Roundness: ≦0.01mm
Straightness: ≦0.15/1000mm
Hard chrome plating thickness: 0.015~0.05mm (can be customized according to customer requirements)
Surface hardness: HB220-260
Standard outer diameter: ￠3~￠120
Standard length: 1000-6000mm
Material: S45C (45#), 40Cr, GCr15, 2Cr13, 42CrMo, SUS304, SUS303, SUS316, etc.
