CK45 SAE1045 S45C Chrome Plated Rod For Oil Cylinders

Basic Information
Place of Origin: Shaanxi, China (Mainland)
Brand Name: OEM
Certification: ISO9001
Model Number: Chrome Plated Rod
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box (fumigation)
Delivery Time: base on order
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
Supply Ability: 6000 Ton/Tons per Year
Detail Information
Name: Chrome Plated Rod Surface Treatment: Hard Chrome Plated/induction Hardened/Quenched
Material: CK45 (SAE1045, S45C), 42CrMo (SAE4140), 20MnV6,St52, Stainless Steel Heat Treated: Not Hardened / Induction Hardened
Hardness: HRC:58-62 Plating Thickness: 10um ~ 20um In Radius
High Light:

S45C Chrome Plated Rod

,

CK45 Chrome Plated Rod

,

SAE1045 Chrome Plated Rod


Product Description

CK45 SAE1045 S45C Chrome Plated Rod For Oil Cylinders



Chrome Plated Rod Introduction



The standard chrome-plated rod (piston rod) is made of selected high-quality 45# steel, which is processed by rough material, peeling or cold drawing, rough calibration, fine calibration, high-precision centerless grinder, electroplating, polishing and highly professional technology. Excellent can eliminate the shortcomings of oil leakage and air leakage. The standard chrome-plated rod (piston rod) is ready for use, which is convenient and quick. The products can be directly used in cylinders, cylinders, shock absorbers, piston rods, guide rods, and guide posts. If customers need special materials and specifications, they can be customized, and they can also be processed according to customer drawings.



Chrome Plated Rod Usage:


Products are widely used in rubber and plastic machinery such as oil cylinders, cylinders, injection molding machines, blow molding machines, die-casting machines, air hydraulic machinery, engineering machinery, packaging and printing machinery, food machinery, medical machinery, light source machinery, textile machinery and other automation equipment.



Chrome Plated Rod Parameters



Model
CK45 SAE1045 S45C Chrome Plated Rod For Oil Cylinders
Diameter
Metric Diameter:3mm,4mm,5mm,6mm,8mm,10mm,12mm,16mm,20mm,25mm.....300mm
Inch Diameter:6.35mm.9.525mm.12.7mm,15.875mm,19.05mm,25.4mm,31.75mm,38.1mm
Length
Full Length 6000mm, it can be cut off according to customer requirement.
Quality
ISO9001:2008 standard
Material
CK45 (SAE1045, S45C), 42CrMo (SAE4140), 20MnV6,St52, Stainless Steel
Surface finish
Hard Chrome / None Chrome
Plating Thickness
10um ~ 20um in radius.
Heat treated
Not Hardened / Induction Hardened
Hardness
HRC:58-62
Hardness Depth
0.8-3.0mm
Precision
g6, h6, h7 or according to your requirement.
Roughness
Less than 1.5μm
Straightness
Less than 1.5μm of 100mm (Rmax)
Roundness
Less than 3.0μm (Rmax)
Performance
Long life and low noise
Custom-made
End Stepped, End Tapped, End Tread, Wrench Flats, Cross Drilled Holes, Key Groove, Set Screw Grooved, and so on.


technical standard:


Outer diameter accuracy: f7, f8, h7
Surface finish: ≦Ra0.4S
Roundness: ≦0.01mm
Straightness: ≦0.15/1000mm
Hard chrome plating thickness: 0.015~0.05mm (can be customized according to customer requirements)
Surface hardness: HB220-260
Standard outer diameter: ¢3~¢120
Standard length: 1000-6000mm
Material: S45C (45#), 40Cr, GCr15, 2Cr13, 42CrMo, SUS304, SUS303, SUS316, etc.



Details

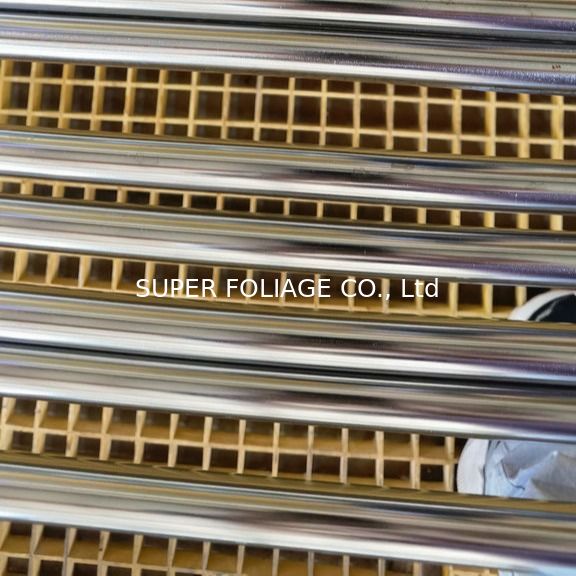

CK45 SAE1045 S45C Chrome Plated Rod For Oil Cylinders 0
