ADI Bearing Stator Tensile Strength Of 750 MPa Elongation Of 11%

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: CE 、LR 、KR
Model Number: OEM
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: base on order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10,000 tons per year
Detail Information
Brand Name: ADI Bearing Technology: ADI
Certificate: CCS 、DNV、LR 、BV Casting Capacity: 10,000 Tons Year
Tensile Strength: 750MPA Elongation: 11%
Advantages: Adi Integrated Factory Grade: 1000 Series, AA
High Light:

ADI Bearing Stator

,

11% elongation ADI Bearing Stator

,

750 MPa ADI Bearing Stator


Product Description

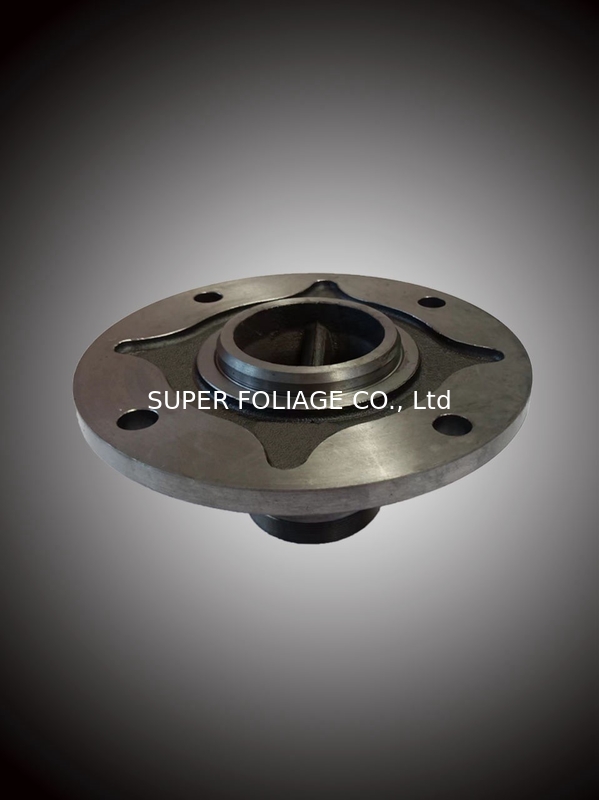

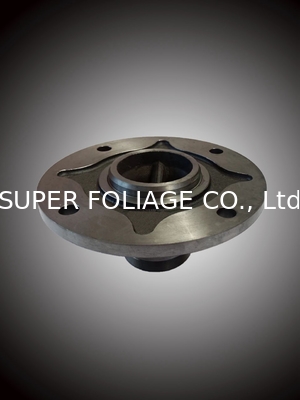

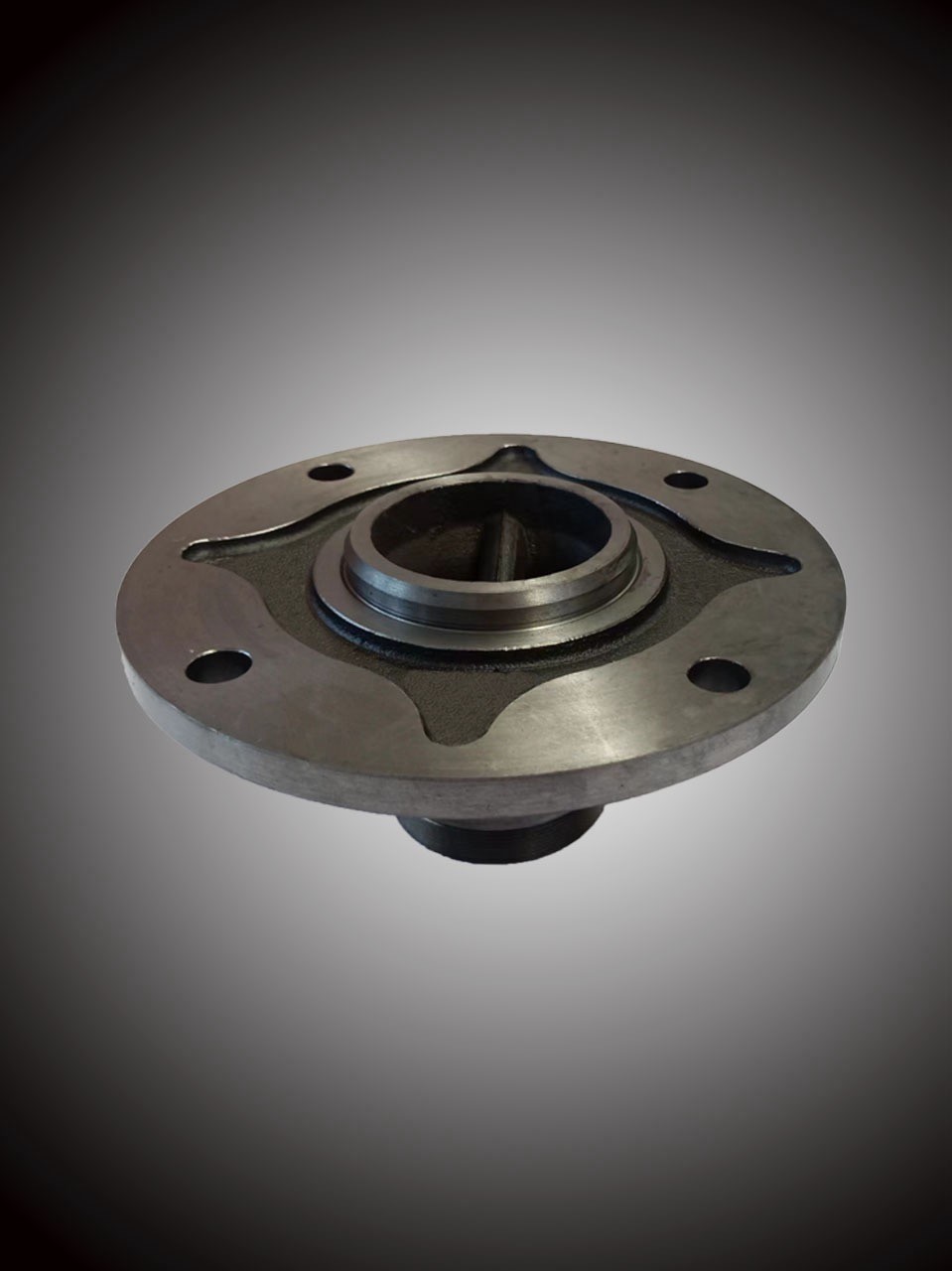

ADI Bearing Stator Tensile strength of 750 MPa elongation of 11%

Advantages of ADI over Conventional Materials

Good damping capacity, good wear resistance, high bending fatigue and contact fatigue strength (equivalent to low-alloy steel), light weight (10% lighter than steel)
Application
Military, petroleum, mining machinery, engineering machinery, wind power industry, and wear-resistant materials industries
Compared to traditional ductile iron or steel, ADI offers the following advantages:

Higher strength-to-weight ratio: ADI can have tensile strengths comparable to some steels but with lower density, making it suitable for lightweight applications.
Improved fatigue resistance: The bainitic structure enhances the material's ability to resist cracking under cyclic loading.
Better wear resistance: The graphite nodules act as solid lubricants, reducing friction and wear.
Enhanced impact toughness: The presence of retained austenite increases the material's energy absorption capacity.
Good machinability: Despite its high strength, ADI can be machined more easily than some other high-strength materials.c

Austempered ductile iron (ADI) is a revolutionary material that combines the benefits of ductile iron with the strength and toughness of steel. Its unique microstructure allows for improved mechanical properties, making it a versatile material for a wide range of industrial applications. By understanding the processing techniques and scientific basis behind ADI, engineers can leverage its potential to design more efficient and durable components.

Preheating Process
Use a preheating furnace for preheating.
ADI Bearing Stator Tensile Strength Of 750 MPa Elongation Of 11% 0
Initial Heating Process
Use a box-type heating furnace for the initial heat treatment
ADI Bearing Stator Tensile Strength Of 750 MPa Elongation Of 11% 1
ADI Bearing Stator Tensile Strength Of 750 MPa Elongation Of 11% 2
Product Transportation
Use rail carts to move products.
ADI Bearing Stator Tensile Strength Of 750 MPa Elongation Of 11% 3
Product Cleaning
Use a cleaning machine to clean the products.
ADI Bearing Stator Tensile Strength Of 750 MPa Elongation Of 11% 4
Our Strengths in Competition:
Efficient Production Process
Utilizing advanced equipment and technology to optimize the manufacturing process and minimize production costs while maintaining high product quality standards.
Strong Supplier Relationships
Established strong relationships with suppliers to ensure timely delivery of high-quality raw materials at a competitive price.
