ADI Cylinder Block Tensile Strength Of 1050 MPa, Elongation Of 7%

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: CE 、LR 、KR
Model Number: OEM
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: base on order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10,000 tons per year
Detail Information
Brand Name: ADI Bearing Technology: ADI
Certificate: CCS 、DNV 、BV、CE Casting Capacity: 10,000 Tons Year
Tensile Strength: 1050MPA Elongation: 7%
Advantages: Adi Integrated Factory Grade: 1000 Series
High Light:

ADI Cylinder Block


7% Elongation ADI Cylinder Block


1050 MPa ADI Cylinder Block

Product Description

ADI Bearing Stator Tensile strength of 750 MPa elongation of 11%

Advantages of ADI over Conventional Materials

Strength-to-Weight Ratio

One of the most notable advantages of ADI castings is their exceptional strength-to-weight ratio. The density of ADI castings is about 10% less than that of steel, making them an excellent choice for applications where weight reduction is critical. This property makes ADI castings particularly suitable for use in transportation, aerospace, and any other sector where reducing weight can lead to improved fuel efficiency and performance.Fracture Resistance and Fatigue Strength

ADI castings are also characterized by their excellent fracture resistance and fatigue strength. The unique microstructure, consisting of graphite nodules in a matrix of bainite and retained austenite, provides a combination of toughness and ductility that enhances the material's ability to resist crack initiation and propagation under cyclic loading. This property is especially beneficial in applications involving dynamically loaded components, such as gears and crankshafts in automotive engines.

Wear Resistance

The wear resistance of ADI castings is another significant advantage. The graphite nodules present in the microstructure act as internal lubricants, reducing friction and wear. This self-lubricating property makes ADI castings highly suitable for applications involving sliding contact or other forms of wear, such as in bearings and gears.

Noise-Damping Properties

ADI castings also offer unique noise-damping properties due to their ability to absorb vibrational energy. This characteristic is attributed to the graphite nodules and the composite-like structure of the material, which helps in damping out vibrations. In applications where noise reduction is important, such as in construction equipment or motor vehicles, ADI castings can significantly improve the comfort and reduce noise pollution.

Design Flexibility

The combination of high strength, light weight, wear resistance, and noise-dampening properties provides designers with great flexibility when choosing materials for various engineering applications. ADI castings can be designed to meet specific performance requirements, offering customizable solutions for complex design challenges.

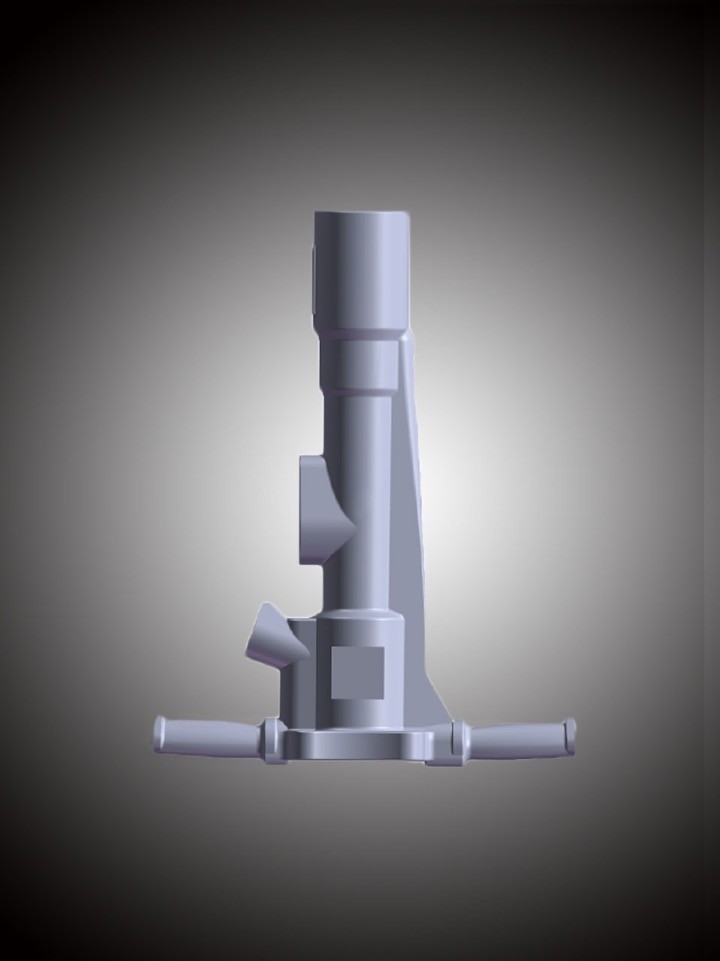

ADI Cylinder Block Tensile Strength Of 1050 MPa,  Elongation Of 7% 0
Our Strengths in Competition:
Efficient Production Process
Utilizing advanced equipment and technology to optimize the manufacturing process and minimize production costs while maintaining high product quality standards.
Strong Supplier Relationships
Established strong relationships with suppliers to ensure timely delivery of high-quality raw materials at a competitive price.
