6-30mm Drilling Range Zk51 Series Inverted CNC Gun Deep Hole Drilling Machine With Advanced PLC Control System

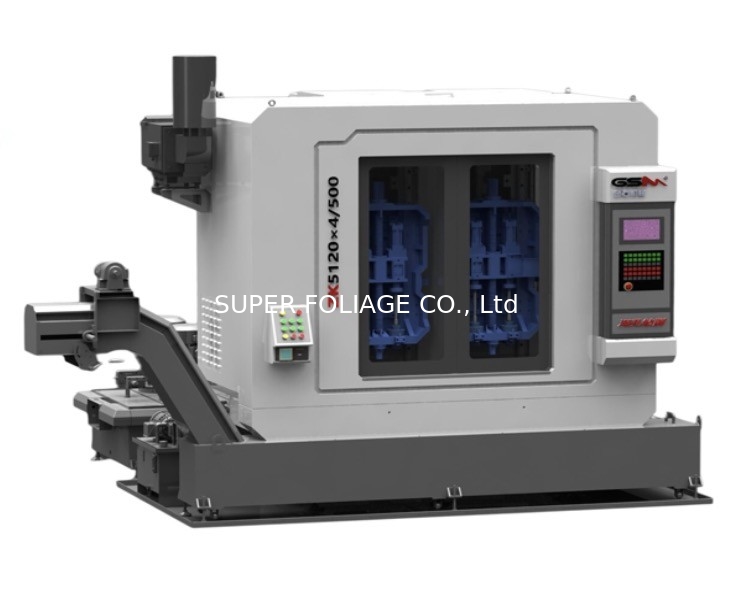

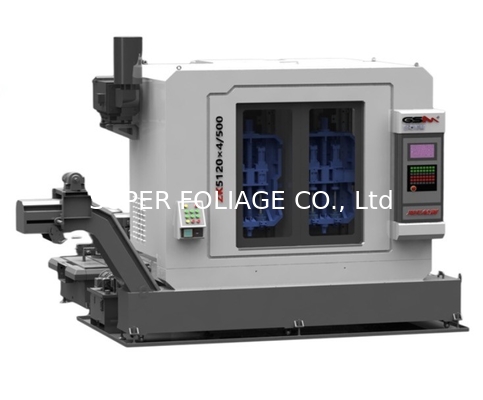

Zk51 series inverted CNC gun drilling machine
Machine spindle inverted, more conducive to chip discharge, but also to obtain excellent processing surface quality. Machinecontrolled by PLC, with "friendly" man-machine dialogue interface. The samme drilling depth can achieve shorter tool length. bettetool rigidity, and higher cuiting eficieney by matching the dedicated guide mechanism. Twvo independent processing units, canprocess the same or different specifications of parts. so that the factory scheduling more flexible and eficient. llorizontal gundrilling machine with an area of less than the same processing capacity.
It is mainly used for batch eficient processing of deep hole and precision line hole of rotary shaft parts with length < 500mm andhole diameter in ф 5-p40mm range.

Independent processing unit: 1/2/3Control

system:plc
Drilling range:6-30mm

Spindle number:2/4

Workpiece clamping:vertical attitude,parts of the outer cirele chamfer or center hole

Maximum clamping length of parts:300/500mm

Hole characteristics:same shaft hole

Feeding way:manual feeding

Typical machining parts:gear shaft, camshaft, etc
