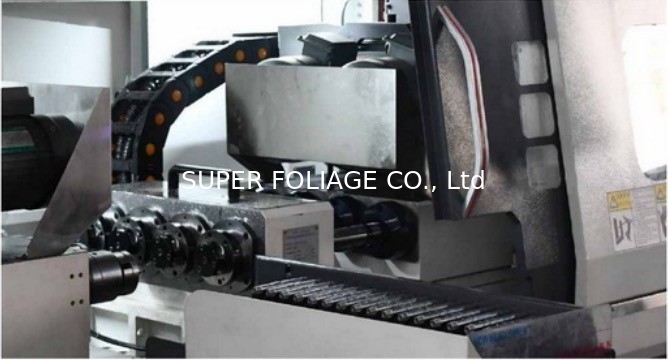

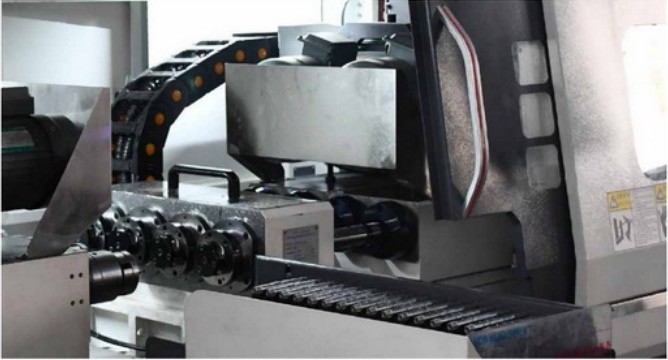

Precision ZK2125*4B/500-S Automobile Piston Pin Special Gun Drill Machine for Central Hole and Outer Chamfer Positioning

The motor shaft special gun drill machine ZK2115*4B-C/500

The automobile piston pin special gun drill machine ZK2125*4B/500-S

Overview:

ZK2l series machine is mainly used in hieh volume drilling concentric hole of small and medium rotary shalt parts. Mlulti spindle andwork position design ensures drill multi workpiece simultaneously. Comprehensive clamping method design with auxiliary support structuremakes fast clamping. Automatic loading belt or robotic arm is optional according to drilling requirement and workpiece’s characteristic.

Hole diameter range: p10-25mm
Positioning and clamping: outer chamfer of parts (Inner cone top plate)
Processing method: single rotation
The max. Drilling depth: 300m/500mm
No. Of main spindle: 4
The max,speed of spindle: 3500 r/min
The typical processing workpiece: piston pin
Hole characteristic: concentric hole
Automatic DEVICE: Manual batch loading and unloading (before), it isequipped with 8 workstation reciprocating lifting type automatic clampingand loading and unloading devicerank shaft, pump body, and automotivebrake valve plate, etc.

Model Features:
The multi-station servo feeding table from the loading and unloading position to the processing area realizes the automatic feeding, discharging and processing of a set number of parts in the processing process. At the same time, the parts of this type of machine tool loading and unloading equipment are located outside the machine tool protective cover shell, which makes the operation easier and safer. It is also very convenient for adding various automation devices to achieve a higher level of automatic processing.
