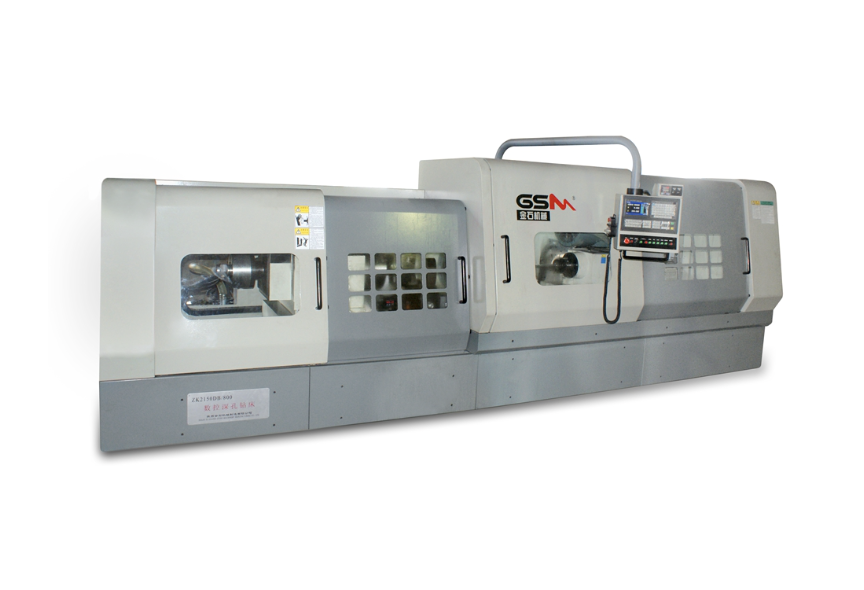

Name: BTA deep hole drilling machine ZK2180*DB/1500
Brand: LUOYANG SUPER FOLIAGE IMPORT&EXPORT TRADE CO,LTD
SKU: ZK2180
Price: 1,050.00 USD
Availability: InStock

Detail Information

Max. Flow:	300 L/Min	Max. Pressure:	5 MPa
Filter Accuracy:	20 Um	Oil Tank Capacity:	1360 L
Ground Area:	6500×3000×1800mm	Distance Between Drill Stem Center And Ground:	1070mm
Weight Of Main Engine:	7.5 T	Weight Of Hydraulic System:	2.5 T

Product Description

BTA deep hole drilling machine ZK2180*DB/1500

Processing Method: BTA , internal chip removing CNC System: FANUC OI Mate TC / GSK980TDC (Optional) Drill Stem: rotary and feed, frequency speed adjustment Workpiece Spindle: rotary at rated speed
Guide Sleeve: hydraulic driven
Clamping: hydraulic chuck; hydraulic center frame

Drilling Ability
1. Number of Spindle: 1 PCS
2. Drilling Diameter Range: φ40～φ80 mm
3. Max. Drilling Depth: 1500 mm
4. Max. Workpiece Diameter: φ320 mm; φ500 mm 5. Clamping Diameter of Center Frame: φ270 mm; φ500 mm
6. Max. Workpiece Length: 1500mm
Drilling Speed
1. Max. Drill Stem Rotary Speed: 750 r/min
2. Workpiece Rotary Speed: 31.5 r/min
3. Feed Speed Range: ≤1500 mm/min
4. Fast Move Speed ≤2000 mm/min
Drilling Accuracy
1. Skewness: ≤1.0/1000 (length to diameter ratio <100)
2. Dimensional Accuracy: IT8～IT11
3. Roughness: Ra1.6～Ra3.2
Machine Power
1. Power of Drill Stem Motor: 30 KW
2. Workpiece Rotary Power: 3.0 KW
3. Oil Cooling Power: 0.8 KW
4. Oil Pump Motor: 15.0+11.0 KW (double pump group)
5. Power of Feed Motor: 3.5 KW 22 M.N
6. Total Power: 65KW
Hydraulic System
1. Max. Flow: 300 L/Min
2. Max. Pressure: 5 MPa
3. Filter Accuracy: 20 um
4．Oil Tank Capacity: 1360 L
Basic Dimension & Weight
1. Ground Area: 6500×3000×1800mm
2. Distance between Drill Stem Center and Ground: 1070mm
3. Weight of Main Engine: 7.5 T
4. Weight of Hydraulic System: 2.5 T

Tag:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE IS09001
Model Number:	ZK2180

Minimum Order Quantity:	Negotiation
Price:	base on order
Packaging Details:	Wooden Box
Delivery Time:	base on order
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000+
